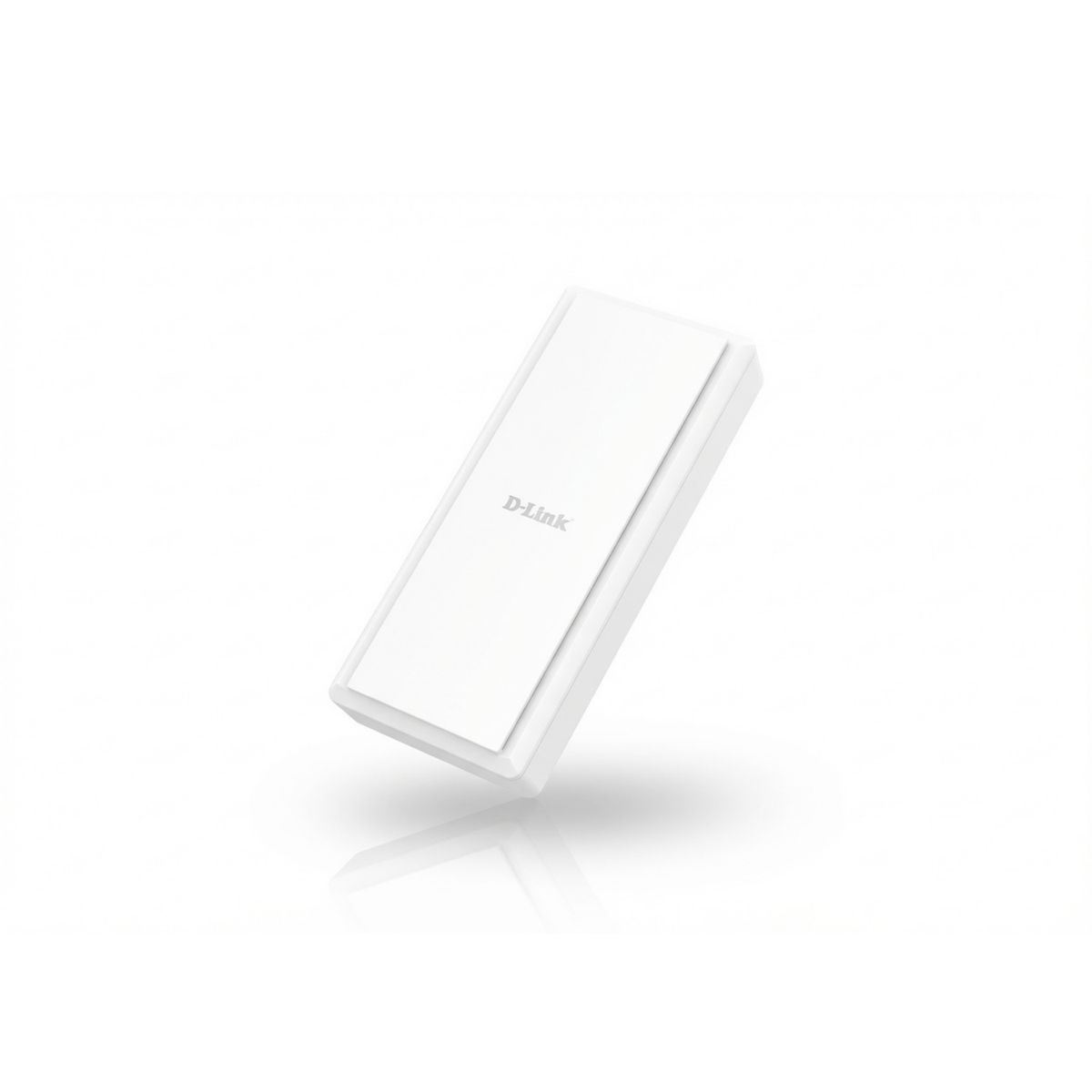

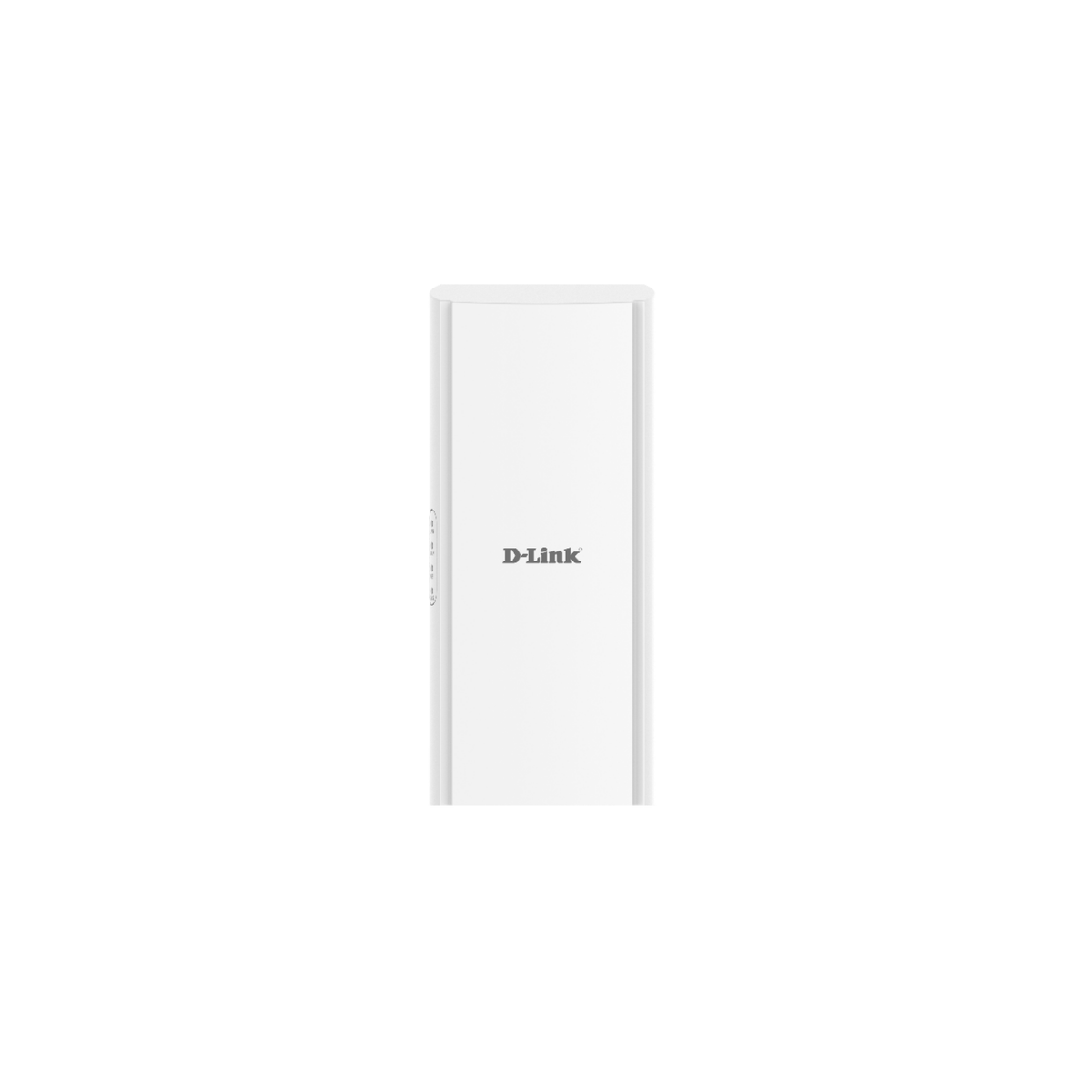

D-Lite Cloud-Managed AX3000 Outdoor Access Point
D-Lite Cloud-Managed AX3000 Outdoor Access Point

D-Lite Cloud-Managed AX3000 Outdoor Access Point

SKU
  • Cloud Management
  • Zero-Touch Deployment
  • Intuitive Interface
  • Unlimited Scalability
  • Band Steering
  • Bandwidth Optimization
  • Auto Channel Management
  • Authentication via Customizable Captive Portal, 802.1x and RADIUS Server
  • Social Login for Guest Wi-Fi Access
  • End-to-End Encryption
  • Event Log and Change Log
  • Over-the-Air Firmware Upgrades
  • Real Time Trac Reporting & Analytics*
  • Automated Monitoring & Alerts
  • Multi-Tenant & Role-Based Administration
  • Map View
  • AI Diagnostics
  • IP67 water and dust-proof housing
  • Supports 500+ Concurrent Wi-Fi Client Device

Pairs well with

* Warranty Details
Downloads Datasheets

Tech Specifications

Hardware
Device Interfaces
  • 1 x RJ45 10M/100M/1000M WAN Ethernet(with PoE), 1 x RJ45 10M/100M/1000M LAN Ethernet
  • 1 x Reset Button,
  • 1 x Power Jack
CPU frequency
  • Quad-Core 1GHz
Memory
  • DDR3L 512Mbyte
Flash

• 128MB Nand Flash

Power Supply

• PoE or 12V/1A DC

Wireless
Wireless
Antenna
  • 2 x 5dBi internal 2.4GHz antennas, 2 x 7dBi internal 5.8GHz antennas
Wi-Fi
  • 2T2R 2.4GHz 802.11b/g/n/ac/ax, 573.5Mbps, 2T2R 5.8GHz 802.11a/n/ac/ax, 2402Mbps
Modulation Schemes
  • OFDM - BPSK,QPSK, 16-QAM, 64-QAM 256-QAM 1024-QAM
    DSSS - DBPSK, DQPSK, CCK
Max Transmit Power 2.4GHz:
  • 2.4GHz:
    11n max 29dbm (26dbm per chain)
    11ac max 29dbm (26dbm per chain)
    11ax max 29dbm (26dbm per chain)
  • 5GHz:
    11n max 29dbm (26dbm per chain)
    11ac max 29dbm (26dbm per chain)
    11ax max 29dbm (26dbm per chain)
RX Sensitivity
  • 2.4GHz:
    11n max - 71dbm
    11ac max - 63dbm
    11ax max - 59dbm
  • 5GHz:
    11n max - 71dbm
    11ac max - 61dbm
    11ax max - 56dbm(HE80)
    11ax max - 53dbm(HE160)
Transfer Rate
  • 2.4GHz:
    HE20: up to 286.8Mbps
    HE40: up to 576.5Mbps
  • 5GHz:
    HE20: up to 286.8Mbps
    HE40: up to 576.5Mbps
    HE80: up to 1201Mbps
    HE160: up to 2402Mbps
General
Security Protocols
  • WEB GUI
  • Command Tool Telnet For Debug
  • APP
  • SSH
  • HTTP/HTTPS
  • Login Authentication
  • NTP
  • Settings Backup & Import & Recovery
  • Firmware Local/Remote Upgrade
  • System Reboot & Scheduled-Restart
  • Network Self-Checking
  • Fault Alarm
  • Fault Collection
  • Diagnostic Tools
    (ping/tracert/nslookup)
Physical
Dimension

• 235.5 x 100.7 x 70mm

Weight

• 530g

Operating Temperature

• -30°C~60°C

Storage Temperature

• -30°C ~ 70°C

Humidity

• 5%~95% (typical)

Mean Time Between Failure (MTBF)

• >250000 hours

Mounting Options

• Wall/Pole Mount

IP Rating

• Rating Min IP67

Certications

• CE
• UL
• RoHS
